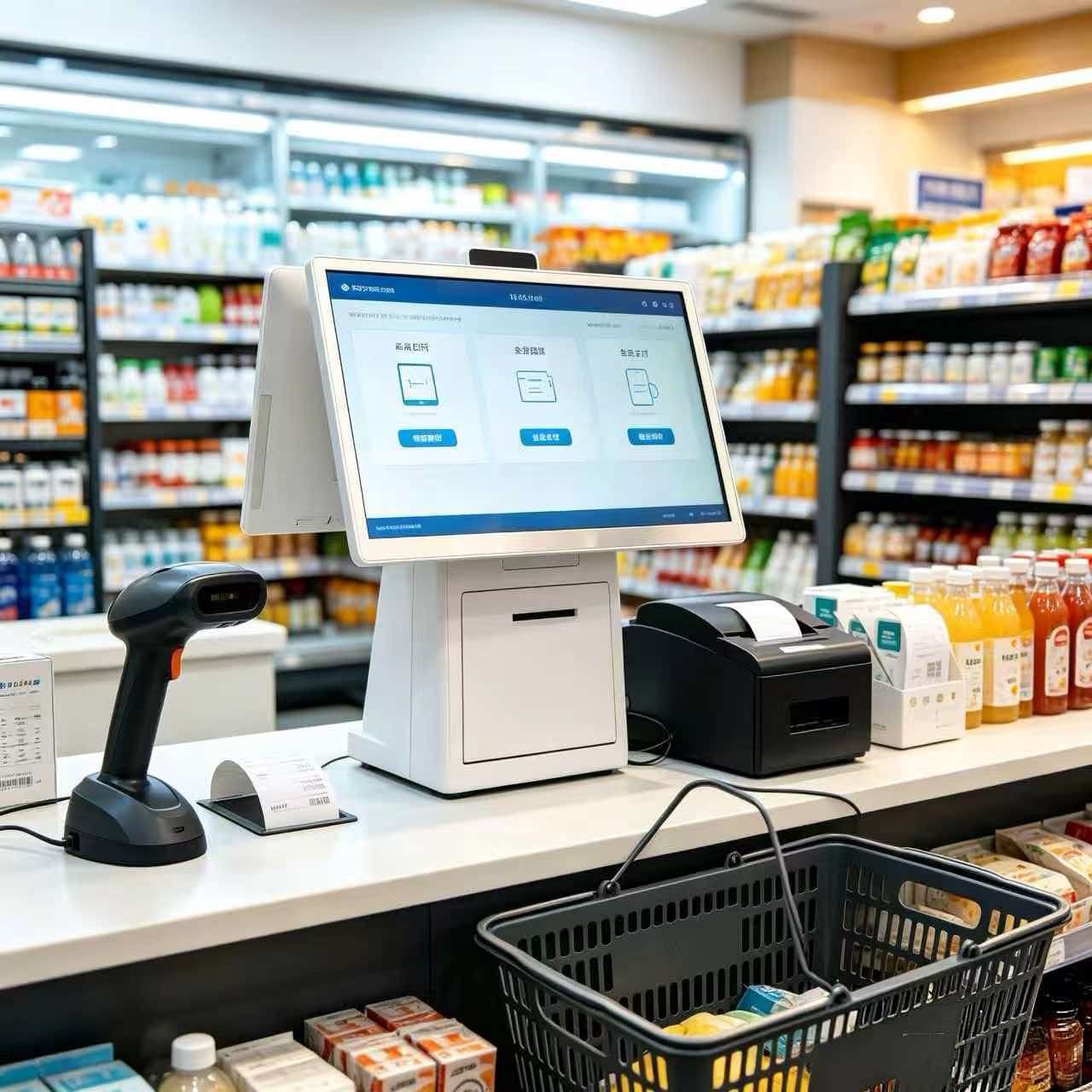

10.1-inch commercial integrated TFT display module, with built-in HDMI driver motherboard, 1024×600 HD resolution, IPS wide viewing angle; G+G 10-point USB driver-free capacitive touch, metal narrow bezel, supports two installation methods: wall mounting / embedded installation; directly compatible with computers, Raspberry Pi, industrial hosts, applicable to smart cash registers, workshop monitoring, self-service inquiry terminals, and embedded device display terminals.
Item No :
OPL-1010Order(MOQ) :
100 pcsPayment :
TTProduct Origin :
ChinaColor :
RGBShipping Port :
ShenzhenLead Time :
4 weeksWeight :
dependsThe OPL-1010 is a 10.1-inch 16:10 commercial all-in-one IPS touch display module, integrated with an HDMI driver motherboard and a G+G capacitive touch structure, with a resolution of 1024×600. It can be quickly powered on for use without an additional driver board, is compatible with various devices such as computers, Raspberry Pi, and industrial hosts, and is widely used in scenarios such as smart cash registers, workshop monitoring, self-service inquiry, and embedded industrial control terminals.
| Category | Parameter | Specification |
| Mechanical Dimensions | Screen Size | 10.1 inch, 16:10 aspect ratio |
| Resolution | 1024 (RGB) × 600 | |
| AA Visible Area | 222.72 × 125.28 mm | |
| Overall Dimensions | 235 × 143 × 12 mm | |
| Installation | M3 fixing holes at four corners; standard VESA mounting holes for wall mounting | |
| Optical Parameters | Panel Type | IPS panel (wide viewing angle) |
| Brightness | 300 cd/㎡ (standard); 1000 cd/㎡ (outdoor model) | |
| Contrast Ratio | 37.50069444 | |
| Color Depth | 16.7M full color | |
| Touch Specifications | Touch Structure | G+G (Glass-on-Glass) capacitive touch |
| Touch Points | 10-point multi-touch | |
| Interface | USB driver-free, plug-and-play | |
| Interface Electrical | Video Input | HDMI 1.4 |
| Auxiliary Interfaces | USB Touch, DC Power, Audio Output | |
| Power Supply | DC 12V / 2A | |
| Environmental Parameters | Commercial Standard | 0 ~ 55 ℃ operating temperature |
| Industrial Customized | -20 ~ 70 ℃ operating temperature |
Core Advantages
Integrated all-in-one design doubles installation efficiency: The screen, driver motherboard and touch layer are integrated into a single unit, with the whole device only 12mm thick. It eliminates the procedures of assembling scattered accessories and wiring debugging, supports two installation methods: flush embedded mounting and VESA wall mounting, and is equipped with M3 mounting holes at four corners, making equipment integration and modification simple and convenient.

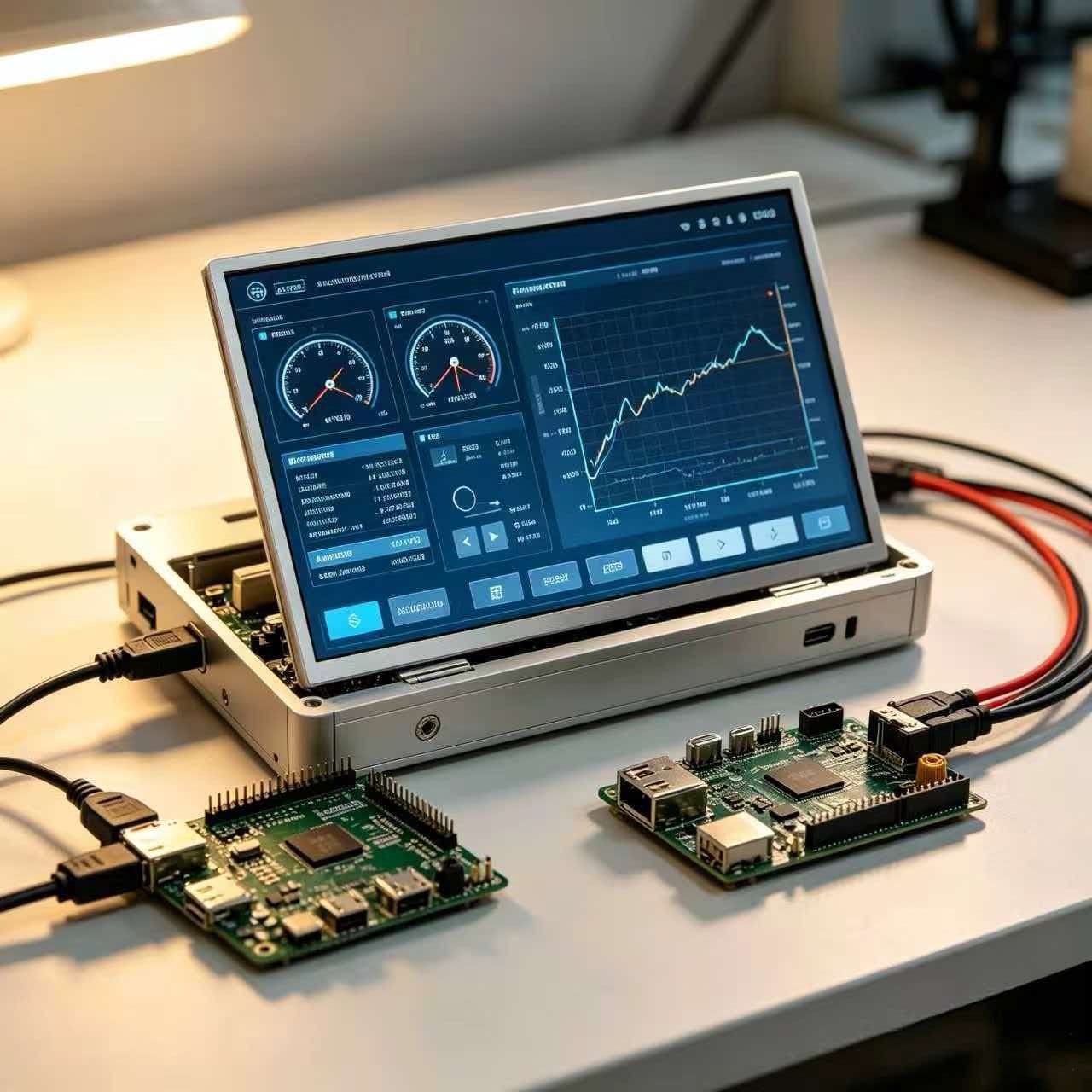

G+G tempered capacitive touch with maximum versatility: It adopts a glass-to-glass touch structure, with the surface layer of tempered glass being wear-resistant and scratch-proof, supporting 10-point touch gesture operation. The USB touch is driver-free, and it is plug-and-play on all systems including Windows, Linux, Android and Raspberry Pi, with no need to install additional touch drivers.
IPS wide-view panel with dual brightness versions available: It is equipped with a native IPS wide-view screen, with no color difference when viewed from all angles. The standard configuration has an indoor commercial brightness of 300cd/㎡, while the outdoor customized version can reach a high brightness of 1000cd. With a 900:1 contrast ratio and 16.7 million full colors, it can display clear images both indoors and in strong outdoor light.

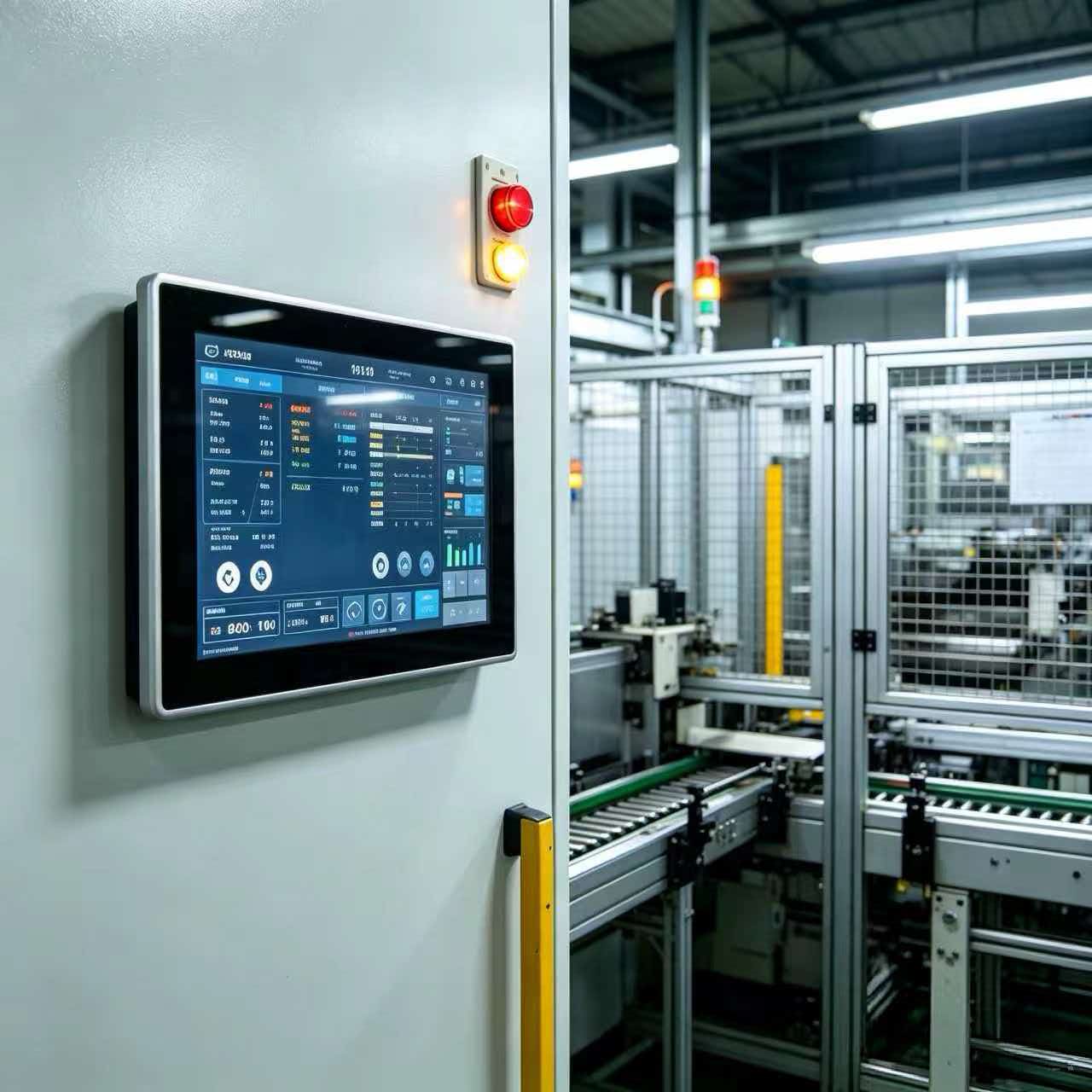

Dual wide-temperature versions adapt to various environmental working conditions: The standard version has an operating temperature range of 0~55℃, which meets the needs of commercial scenarios such as supermarkets and indoor workshops. The industrial customized wide-temperature version can operate stably in an environment of -20℃~70℃, coping with harsh working conditions such as low-temperature workshops and vehicle-mounted industrial control, and supports 7×24 hours of uninterrupted power-on operation.
Complete interfaces for convenient expansion: It is equipped with HDMI1.4 video input, USB touch, DC power supply and 3.5mm audio output interfaces. After powering on and connecting the signal cable, it can realize the full set of functions of image display, touch interaction and audio playback.
Target Applications
Frequently Asked Questions
Q1: Is the touch function really driver-free? Can it be used directly with Raspberry Pi?
A: The touch function adopts a USB driver-free solution. For all mainstream systems including Windows, Linux, Android and all Raspberry Pi models, you can use the touch function normally just by plugging in the USB cable, no need to install drivers, and it has extremely strong compatibility.
Q2: The ordinary indoor model cannot be seen clearly when placed in sunlight. How to solve this problem?
A: The indoor standard version has a brightness of 300cd, which is only suitable for indoor light-shielded environments. For strong light scenarios such as outdoors or by the window, you can purchase the 1000cd high-brightness customized version, which has an anti-glare effect and is clearly visible in sunlight.
Q3: Can it be embedded inside the equipment shell to make an all-in-one machine?
A: Fully supported. The overall thickness of the device is 12mm, with reserved M3 fixing holes at the four corners of the机身, and matched with a metal narrow bezel structure, it is very suitable for embedding into equipment shells and control cabinets to make integrated touch devices. It also supports standard VESA wall mounting.
