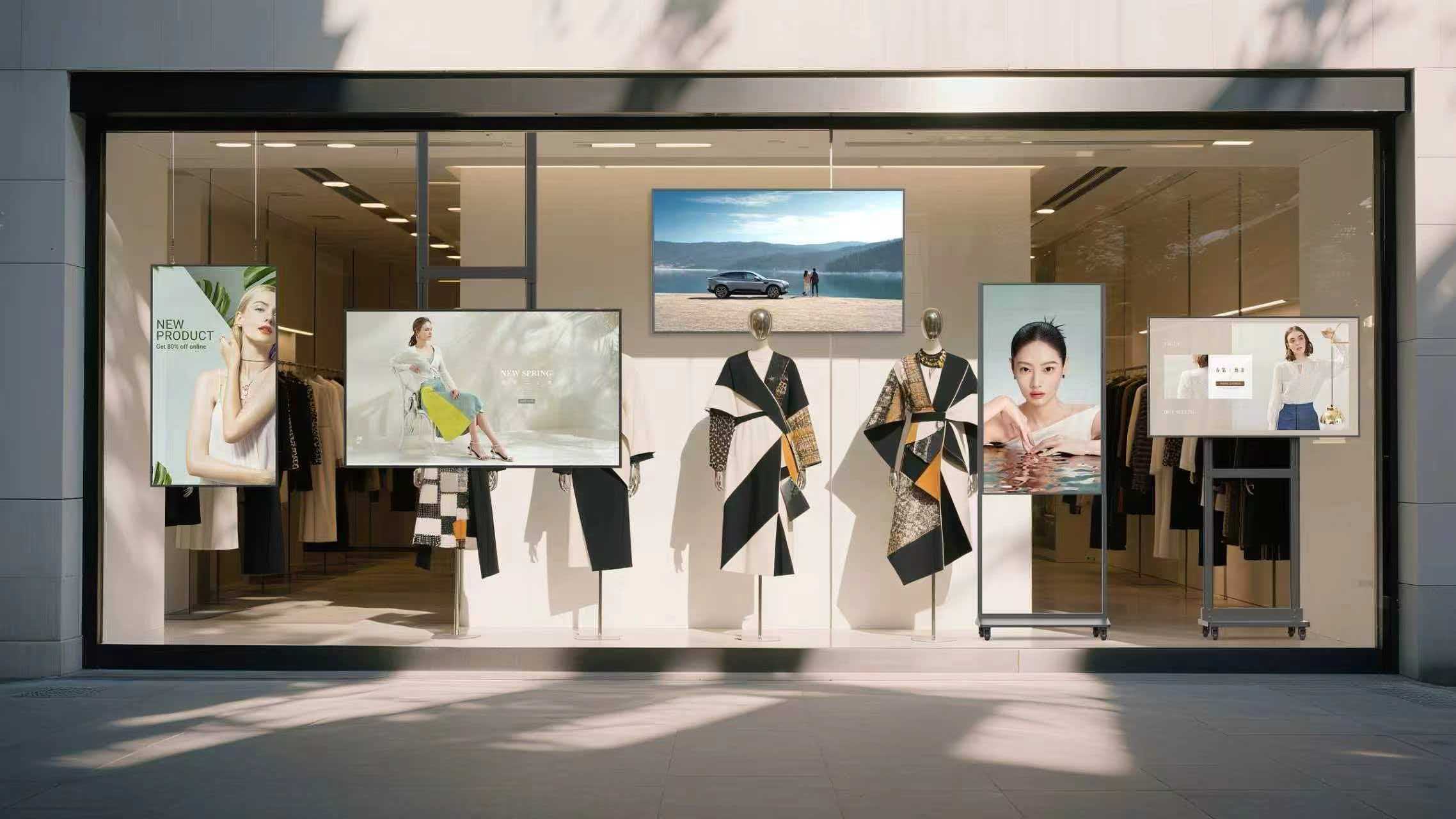

The S4 series solves traditional displays' direct sunlight issue with ultra-high brightness, ensuring clear, flawless visuals even under midday sun to attract passers-by and turn windows into "street attraction stations". Its slim, stylish design breaks scene limits, seamlessly integrating into minimalist, light luxury, and other display layouts to highlight the brand's sophisticated, modern, tech-infused style. Practically, it balances bright, clear displays with low power consumption—delivering vivid dynamic content while cutting long-term energy use, helping enterprises boost display efficiency, optimize costs, and convert investment into visible customer flow and brand quality.
Item No :
Series S4 high brightness panelOrder(MOQ) :
1pcPayment :
tt advanceProduct Origin :
ChinaColor :
blackShipping Port :
ShenzhenLead Time :
10 daysWeight :
dependsAdhering to independent R&D, the S4 series features a fully symmetrical four-sided layout for visual balance. Its 12mm all-metal narrow bezel pairs with a 93% high screen-to-body ratio, minimizing bezel interference for an immersive viewing experience. With a slim 47mm thickness and integrated modern industrial design, it breaks the "high-brightness = bulky" stereotype, while its smooth rear cover emphasizes simplicity and fashion. Compared to similar products (over 15mm bezels, over 80mm thickness), the thinner, lighter S4 enhances display case aesthetics, reduces packaging size/weight, and lowers logistics and transportation costs for terminal procurement.
|
Model |
S4 |
|||||||
|
Panel |
Display Size(inch) |
32" |
43" |
49" |
55" |
65" |
75" |
|
|
Resolution |
1920x1080 |
1920x1080 |
1920x1080 |
1920x1080 |
3840x2160 |
3840x2160 |
||
|
Active Display Area(mm) |
702.8x397.3 |
942x530.4 |
1075x 605 |
1210 x 680.8 |
1429 x 804 |
1651.2 x930.2 |
||
|
Aspect Ratio |
16:09 |
16:09 |
16:09 |
16:09 |
16:09 |
16:09 |
||
|
Brightness(cd/m2) |
3000nits |
3000nits |
3000nits |
3000nits |
3000nits |
3000nits |
||
|
Contrast Ratio(Typ.) |
1200:1 |
1200:1 |
1200:1 |
1200:1 |
1200:1 |
1200:1 |
||
|
Viewing Angle(HV) |
178/178 |
178/178 |
178/178 |
178/178 |
178/178 |
178/178 |
||
|
Color |
16.7M |
16.7M |
16.7M |
16.7M |
16.7M |
16.7M |
||
|
Response Time(G-to-G) |
6ms |
6ms |
6ms |
6ms |
6ms |
6ms |
||
|
Operation Hour |
24/7 |
24/7 |
24/7 |
24/7 |
24/7 |
24/7 |
||
|
Sound |
Loud Speaker |
5W,8Ω(2 sets) |
5W,8Ω(2 sets) |
5W,8Ω(2 sets) |
5W,8Ω(2 sets) |
5W,8Ω(2 sets) |
5W,8Ω(2 sets) |
|
|
Power |
Type |
Internal |
Internal |
Internal |
Internal |
Internal |
Internal |
|
|
Power Supply |
AC 100 - 240 V~(+/- 10 %).50/60 Hz |
|||||||
|
Power |
Max[W/h] |
130 |
180 |
140 |
280 |
450 |
560 |
|
|
Sleep mode |
less than 0.5W |
less than 0.5W |
less than 0.5W |
less than 0.5W |
less than 0.5W |
less than 0.5W |
||
|
Off mode |
less than 0.5W |
less than 0.5w |
less than 0.5W |
less than 0.5W |
less than 0.5W |
less than 0.5W |
||
|
Mechanical |
Protection Glass |
NO |
||||||
|
Dimension (mm) |
725.8*47*420.4 |
968.8*47*556.8 |
1101.8*47*631.8 |
1236.8*47*707.8 |
1455.8*47*830.8 |
1678*47*957 |
||
|
VESA HOLE (mm) |
400*300 |
400*400 |
400*400 |
400*400 |
400*600 |
400*600 |
||
|
Package Size (mm) |
89*20*58 |
113*20*72 |
126*21*79 |
140*20*86.5 |
162*20.5*100 |
184.5*20.5*111 |
||
|
Net Weight (kg) |
10 |
15 |
19 |
24.6 |
31.5 |
39.2 |
||
|
Gross Weight (kg) |
14 |
20.5 |
25.5 |
32.5 |
46 |
51.5 |
||
|
Environmental |
TNIScreen TNI |
100℃ |
100℃ |
105℃ |
110℃ |
110℃ |
110℃ |
|
|
Operating Environment Temperature |
0℃~50℃ |
0℃~50℃ |
0℃~50℃ |
0℃~50℃ |
0℃~50℃ |
0℃~50℃ |
||
|
Operating Humidity |
10%~80% |
10%~80% |
10%~80 % |
10%~80% |
10%~80 % |
10%~80% |
||
|
Storage Humidity |
5%~95% |
5%~95% |
5%~95% |
5%~95% |
5%~95% |
5%~95% |
||
|
OS |
Android |
Processor |
RK3568 (2.0 GHz, octa core) |
|||||
|
RAM |
4G |
|||||||
|
Flash |
32G |
|||||||
|
USB |
USB2.0 HOST(X2) |
|||||||
|
LAN |
10M/100M Ethernet(Netw ork version screen only) |
|||||||
|
External memory |
8G/16G/32G/64G |
|||||||
|
Multimedia |
Video(MPG,AVI,MP4,RM,RMVB,TS),Audio(MP3,WMA),Image(JPG,GIF,BMP,PNG) |
|||||||
|
Media Resolution |
1920*1080 3840*2160 |
|||||||
|
Wi-Fi |
802.11b/g/n Ethernet(Netw ork version screen only) |
|||||||
|
Operating System |
Android 11 |
|||||||
|
Certifi cation |
Safety |
CE ROHS |
||||||
|
Accessories |
Included |
Scheduling softw are, Remote control, Key, Pow er cable, SD card |
||||||
|
Quality assurance |
1Year (2-3 years optional) |
|||||||
|
Type of packaging |
Carton box /honeycomb box + wooden case |
|||||||
