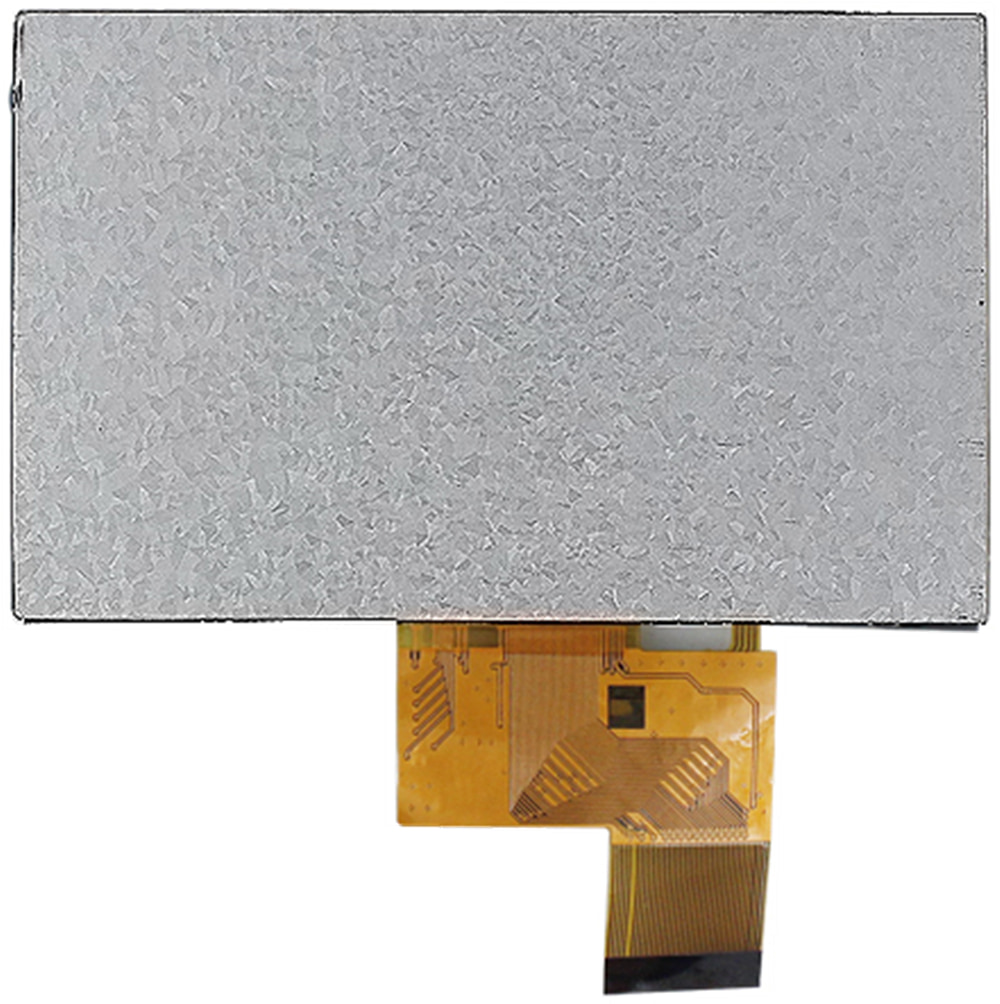

This product brief introduces a high-performance 5.0-inch TFT LCD module that combines the superior visual quality of an IPS (In-Plane Switching) panel with a compact form factor. Designed with a sharp 800x480 resolution and a direct RGB interface, this display delivers vibrant colors, exceptional clarity, and wide viewing angles, making it the ideal choice for advanced user interfaces across various applications.

Key Specifications

Detailed Features

• Superior Image Quality with IPS Technology:

  • The advanced IPS panel ensures consistent, accurate colors and high contrast ratios with minimal color shift or contrast inversion when viewed from any direction. This "Full Viewing Angle" capability is critical for applications with multiple viewers or non-frontal mounting.

• High Resolution and Clarity:

  • With a resolution of 800x480 (WVGA) packed into a 5-inch diagonal, this display offers exceptional pixel density for rendering sharp text, intricate graphics, and smooth icons, significantly enhancing the user experience.

• Direct RGB Interface:

  • The standard RGB interface allows for a direct, streamlined connection to most modern application processors and microcontrollers (MPUs), eliminating the need for an external controller IC. This simplifies system design and reduces overall component cost.

• Vibrant Color Performance:

  • The module is engineered to deliver a wide color gamut, producing rich and vibrant images that are ideal for multimedia applications and sophisticated graphical user interfaces (GUIs).

• Compact and Versatile Design:

  • The 5-inch form factor provides an optimal balance between a generous viewing area and compact size, making it suitable for space-constrained applications without compromising on visual content.

Target Applications

This versatile and high-fidelity display module is perfectly suited for:

• High-End Industrial HMI (Human-Machine Interface)

• Portable Medical Diagnostic Devices

• Automotive Center Console Displays

• Consumer Audio/Video Equipment

• Smart Home and Automation Control Panels

• Advanced Instrumentation and Control Systems

• Handheld Test and Measurement Devices

Our 5.0-inch IPS TFT LCD module represents a premium display solution where outstanding visual performance is paramount. It combines the benefits of wide-viewing IPS technology, high resolution, and an easy-to-integrate RGB interface into a compact and efficient package. This module is designed to bring exceptional clarity and reliability to your most demanding applications.
