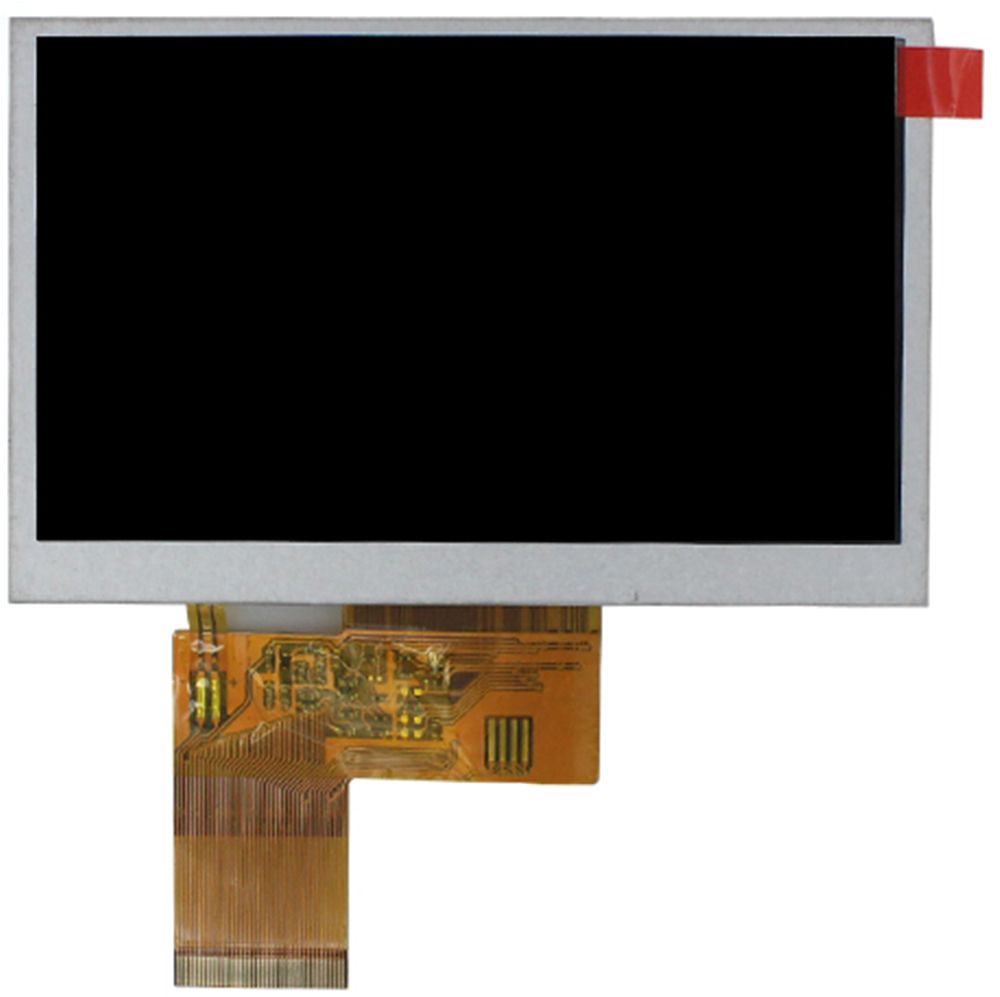

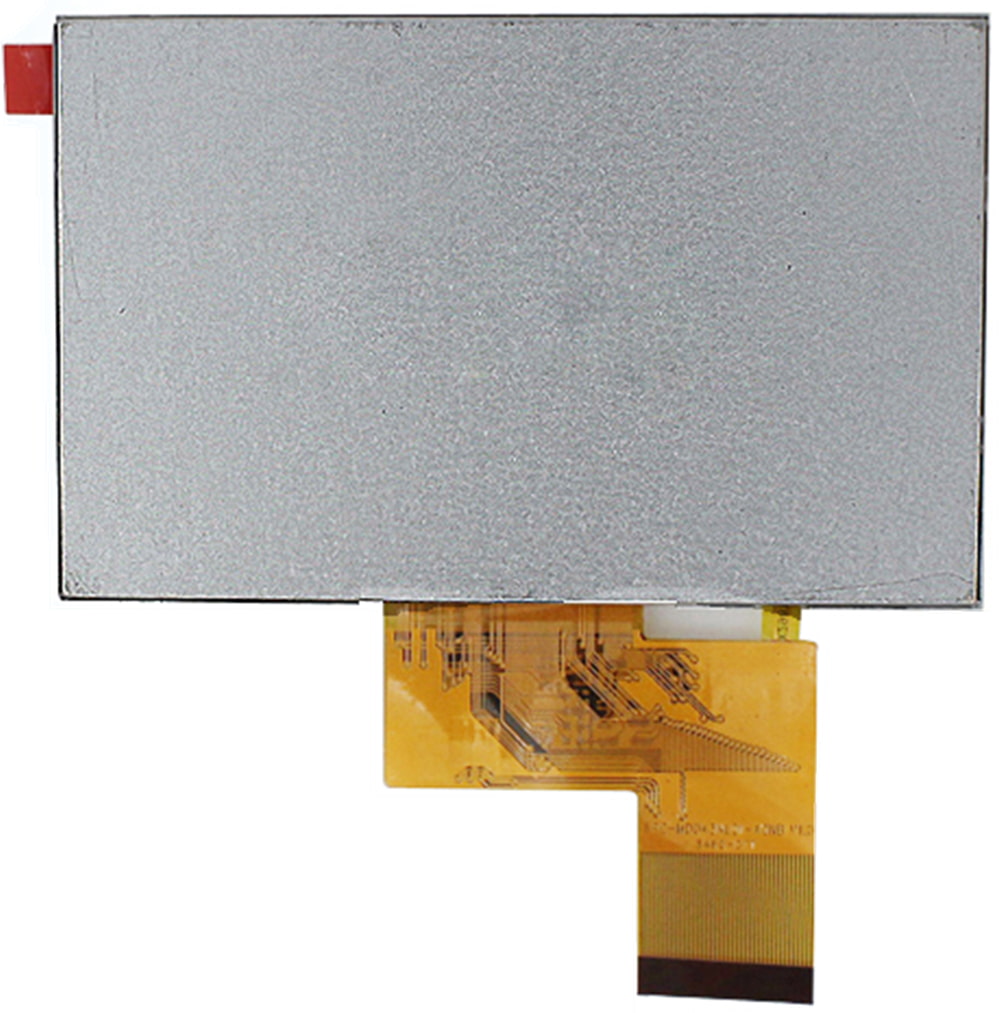

TFT LCD module 4.3 inch IPS with or without touch panel
This product brief introduces a high-performance 4.3-inch TFT LCD module designed to deliver exceptional visual performance and reliability. Featuring an advanced IPS (In-Plane Switching) panel, this display offers wide viewing angles and vibrant color reproduction, making it an ideal solution for a wide range of industrial, consumer, and embedded applications.
Key Specifications
| Display Size |
4.3 inch (diagonal) |
| Panel Type |
IPS TFT LCD |
| Resolution |
480 (H) × 272 (V) pixels |
| Aspect Ratio |
16:09 |
| Interface |
RGB (Red, Green, Blue) Digital Interface |
| Viewing Angle |
Full Viewing Angle (Typically 80/80/80/80 degrees, U/D/L/R) |
| Active Area |
95.04 mm × 53.86 mm |
| Pixel Pitch |
0.198 mm × 0.198 mm |
| Item |
Specification |
Unit |
Remarks |
| Outline Dimension |
105.5(H)×67.2(V)×3.0(body) |
mm |
Tolerance: ±0.2mm |
| Display area |
95.04(H)×53.856(V) |
mm |
|
| Number of Pixel |
480 RGB(H)×272(V) |
pixels |
|
| Pixel pitch |
0.198×0.198 |
mm |
|
| Pixel arrangement |
Pixels RGB Vertical stripe |
|
|
| Display mode |
Normally Black |
|
|
| Surface treatment |
|
|
|
| Weight |
TBD (Typ.) |
gram |
|
| Back-light |
Single LED (Side-Light type) |
|
|
Detailed Features
• Superior Image Quality with IPS Technology:
◦ The IPS panel ensures consistent and accurate colors without significant shift or contrast inversion when viewed from extreme angles. This "Full Viewing Angle" capability is critical for applications where the screen may not be viewed directly head-on.
• Sharp and Clear Resolution:
◦ With a resolution of 480 × 272 (WVGA), the display renders text, graphics, and user interface elements with sharp clarity and detail, providing an excellent user experience.
• Standard RGB Interface:
◦ The built-in RGB interface allows for direct connection to most modern microprocessors (MPUs) and Application Processors (APUs) without the need for an external controller IC, simplifying design and reducing overall system cost.
• Excellent Readability:
◦ The combination of high brightness, high contrast ratio, and IPS technology ensures excellent readability under various lighting conditions.
Target Applications
This versatile display module is perfectly suited for:
• Industrial Human-Machine Interfaces (HMI)
• Portable Medical Devices
• Point-of-Sale (POS) Systems
• Automotive Dash Displays / Rear-Seat Entertainment
• Smart Home Control Panels
• Test and Measurement Equipment
• Consumer Electronics and Handheld Devices
Our 4.3-inch IPS TFT LCD module combines a robust feature set with a high-quality visual experience. Its standard RGB interface and wide viewing angles make it a reliable and cost-effective choice for designers seeking to enhance their products with a clear, vibrant, and durable display solution.
