1.3-inch circular IPS TFT LCD module

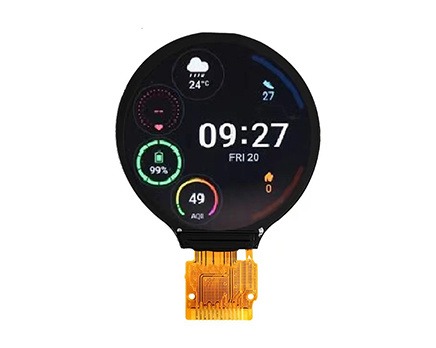

1.3-inch circular IPS TFT LCD module (model: TFT-H013A6QQIGC7N10) is a high-brightness circular micro-display equipped with an IPS wide-view panel, 240×240 circular resolution, built-in GC9A01 driver chip, and uses 10PIN SPI FPC flexible flat cable for communication.

Core Advantages

✅ 750cd/m²ultra-high brightness, excellent visibility in outdoor and strong light environments;

✅ IPS full-view display, viewing angle up, down, left and right ≥80, no color shift in the picture from any angle;

✅ Wide-temperature industrial-grade design, stable operation from -20℃ to 70℃, with 8KV ESD anti-static capability;

✅ Compatible with mainstream development platforms such as ESP32/STM32/Arduino, low development threshold;

✅ Supports optional PCAP capacitive touch full-lamination solution, providing a one-stop touch display solution;

✅ Ultra-thin 1.6mm overall thickness, circular appearance suitable for the structure of knob-type and wearable products.

Target Applications

Widely used in circular interactive terminals such as smart bracelets, vehicle air conditioner control knobs, and small testing instruments.

Frequently Asked Questions

Q1: Can this circular screen be directly driven by ESP32? Is an additional driver board required?

A: It can be directly driven. The module has a built-in GC9A01 driver IC and a standard SPI interface. There are abundant open-source driver routines available online. ESP32, STM32, and Arduino can all drive it directly, with no additional driver board needed.

Q2: Does the 750cd/m² high-brightness version support outdoor use? Is it visible under sunlight?

A: With a high brightness of 750cd/m², its visibility under strong light is greatly improved compared with ordinary screens with 300-400cd/m² brightness, and it is suitable for semi-outdoor scenarios. For scenarios with long-term exposure to open-air sunlight, it is recommended to use it with an anti-glare cover.

Q3: How to select the capacitive touch option? Is full lamination of the screen supported?

A: Customization of PCAP capacitive touch is supported, and integrated finished products of display + capacitive touch with full lamination can be provided. The default shipment is a display without touch function, and the touch version requires separate order placement for customization.
