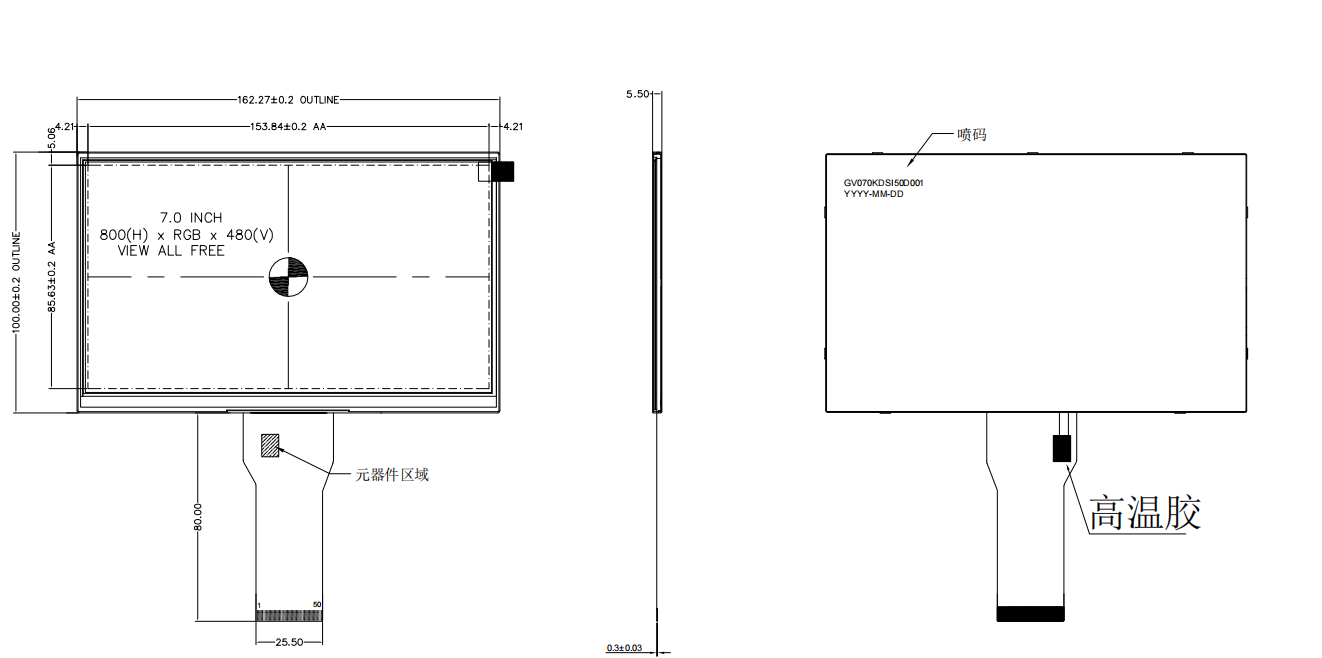

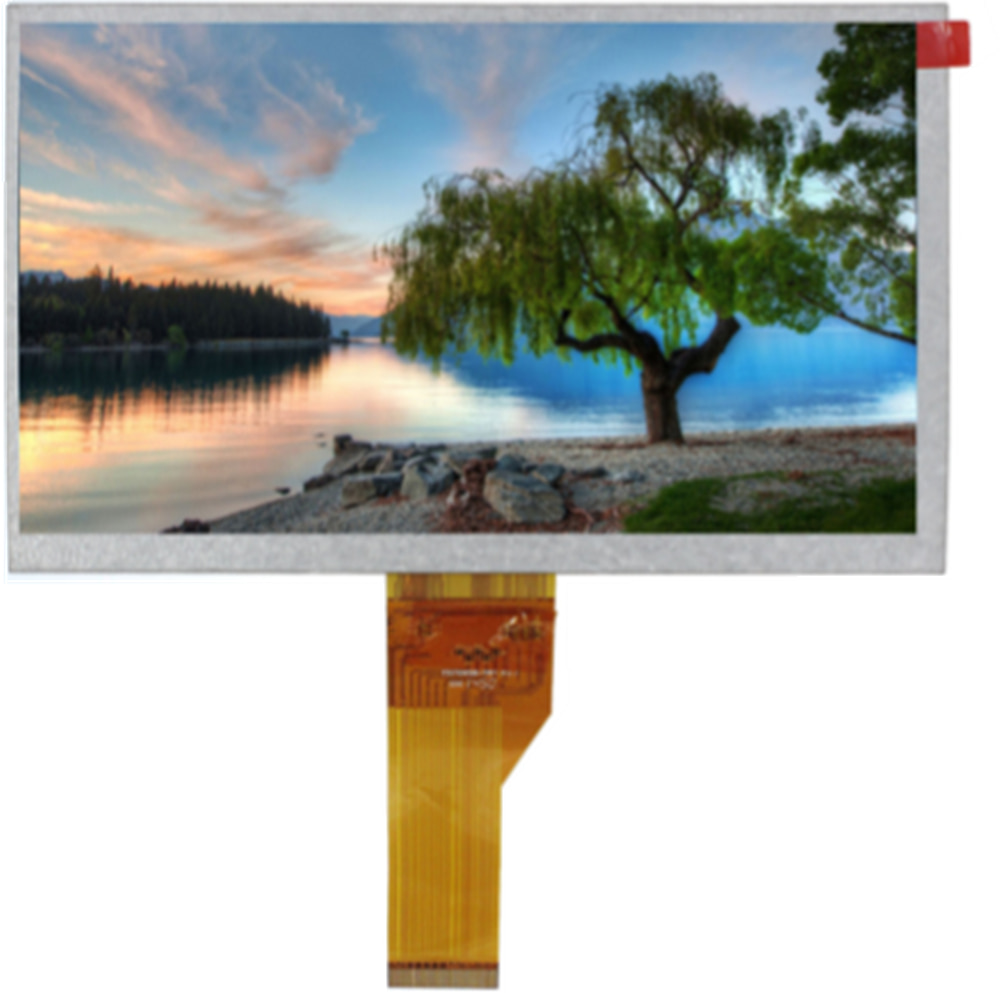

7 inch TFT 800x480 RGB LCD with or without CTP / RTP

7 inch TFT 800x480 RGB with or without CTP / RTP

This product brief introduces a high-value 7.0-inch TFT LCD module designed for applications requiring a larger display area with a standard resolution. Utilizing a Twisted Nematic (TN) panel, this module offers a cost-effective solution with a sharp image and a standard RGB interface for direct connection to a host processor. It is an ideal choice for industrial, commercial, and embedded systems where screen size and clarity are key.

Key Specifications

Detailed Features

• Large, Clear Display Area:

  • The 7.0-inch screen with 800x480 resolution (WVGA) provides ample space for displaying complex user interfaces, detailed graphics, and large amounts of data with good clarity.

• Cost-Effective TN Technology:

  • The Twisted Nematic (TN) panel offers a reliable and economical display solution. It provides excellent image quality for front-of-screen viewing, making it suitable for applications where the user interacts directly with the display.

• Direct RGB Interface:

  • The built-in RGB interface allows for a direct connection to most application processors and microcontrollers (MPUs), simplifying the design by eliminating the need for an external LCD controller and reducing the Bill of Materials (BOM) cost.

• High Brightness & Contrast:

  • The module is designed with high brightness (typical value e.g., 300-400 nits) and a good contrast ratio, ensuring readability in various indoor lighting environments.

• Robust Construction:

  • The module is built for durability and stable performance in commercial and industrial settings.

Target Applications

This display module is perfectly suited for a wide range of applications, including:

• Industrial Human-Machine Interface (HMI) Panels

• Portable Navigation Devices (PND)

• Point-of-Sale (POS) Terminals and Kiosks

• Test and Measurement Equipment

• Automotive Aftermarket Displays (e.g., rear-seat entertainment)

• Smart Home Control Centers

• Factory Automation Control Panels

The 7.0-inch TN TFT LCD module delivers an optimal balance of screen size, resolution, and cost-effectiveness. Its standard RGB interface ensures easy integration, while the large WVGA format provides a compelling visual experience for end-users. This module is a practical and reliable choice for enhancing the user interface of a wide array of electronic products.
